Auto-Curate Your Data#

Robotics teams collect far more data than anyone can review by hand. The interesting moments — a hard landing, a stair climb, a near-miss — are buried in hours of normal operation. This guide shows how to go from raw logs to a curated set of events automatically: you describe what qualifies as an interesting moment once, and Roboto’s AI finds every occurrence and organizes them into a Collection for you.

By the end of this guide you will have:

  1. A Skill that captures how to detect a Stair Climb Event from the elevation signal and the front camera topic.

  2. An Agent that applies the skill to any dataset and — through a Goal — is required to create the events it finds and add them to a collection.

  3. A Collection of validated Stair Climb Events, ready for downstream review or conversion into an ML-ready format like LeRobot.

We’ll use two example logs from the GrandTour Dataset, recorded on an ANYmal legged robot.

Preparation#

  • Create a Roboto Account and sign in.

  • Learn the core concepts of Roboto: Concepts.

  • This guide assumes your organization has a ROS ingestion trigger configured, so uploaded .mcap files are ingested automatically. If yours does not, follow ROS Triggers first.

  • Download the two sample logs: arche_small.mcap and polyterrasse_small.mcap.

  • Using the + icon in the top navigation bar, create a dataset and upload arche_small.mcap to it. Then create a second dataset for polyterrasse_small.mcap. We’ll use the first dataset to develop and test the skill, and the second to run the agent unattended.

  • Roboto ingests the .mcap files automatically on upload. Once ingestion completes, each dataset has the two topics this guide uses: the state estimator (/anymal/state_estimator/anymal_state) and the front camera (/boxi/hdr/front/image_raw/compressed).

Create a Skill#

A Skill is a stored, versioned procedure for Roboto’s AI. Writing the stair-climb detection logic as a skill means everyone on your team — and every agent — can run the same investigation.

  1. Go to Agents → Skills in the web app and click Create Skill. Name it detect_stair_climb and fill in the two fields:

    When to use — the short description the AI reads when deciding whether the skill applies to a request:

    Apply this skill to determine if a stair climb can be observed in provided data.

    Procedure / body — the instructions the AI follows:

    Find instances of stair climbing.

First, look at [[/anymal/state_estimator/anymal_state.contacts.position.z]]
and find periods where there is a significant elevation change (>0.4m).

Second, look at the [[/boxi/hdr/front/image_raw/compressed]] images and
validate that the robot is climbing stairs.

For each validated stair climb, create a Roboto Event.

    Type [[ in the editor to reference a topic — referenced topics are pre-loaded for the AI, so it starts the investigation already knowing where to look.

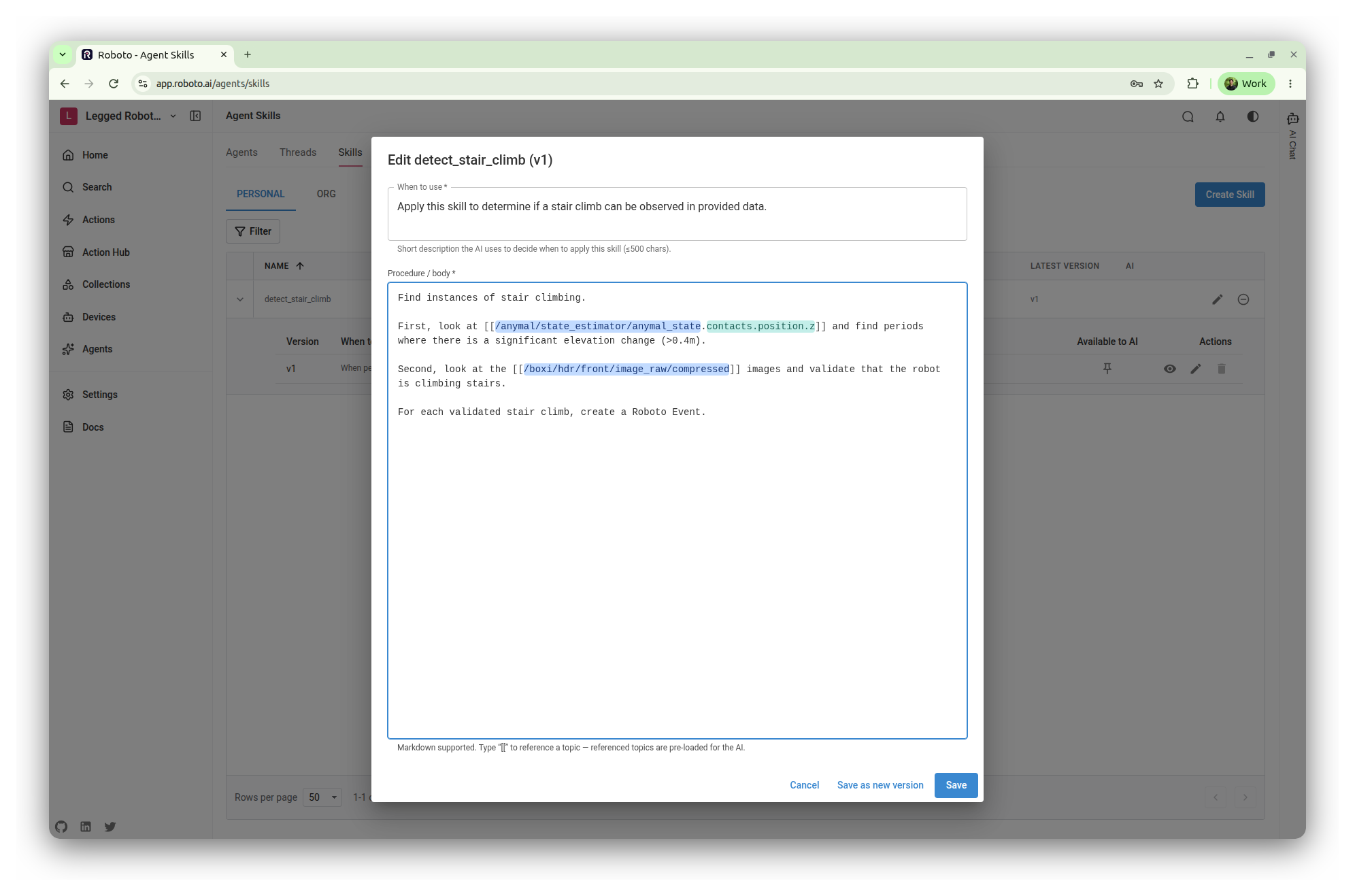

    The Skill editor showing the detect_stair_climb skill, with a "when to use" description and a procedure that references the state estimator and front camera topics

Note how the procedure combines two signals: a numeric threshold on the elevation channel to find candidates, and the camera to validate that a candidate is a staircase, not a ramp or slope. Being explicit about the signals and the decision rule makes a skill reliable; vague instructions leave the AI room to guess.

Tip

You can also create a skill interactively: explore a dataset in AI Chat until the investigation works, then ask the AI to save the conversation as a skill. It drafts the name, description, and body for your review — nothing is saved until you approve it.

Test the Skill on the First Dataset#

  1. Open arche_small.mcap from the first dataset in the visualizer, and open AI Chat from the sidebar on the right. Type / in the chat composer and select detect_stair_climb to invoke the skill on this file.

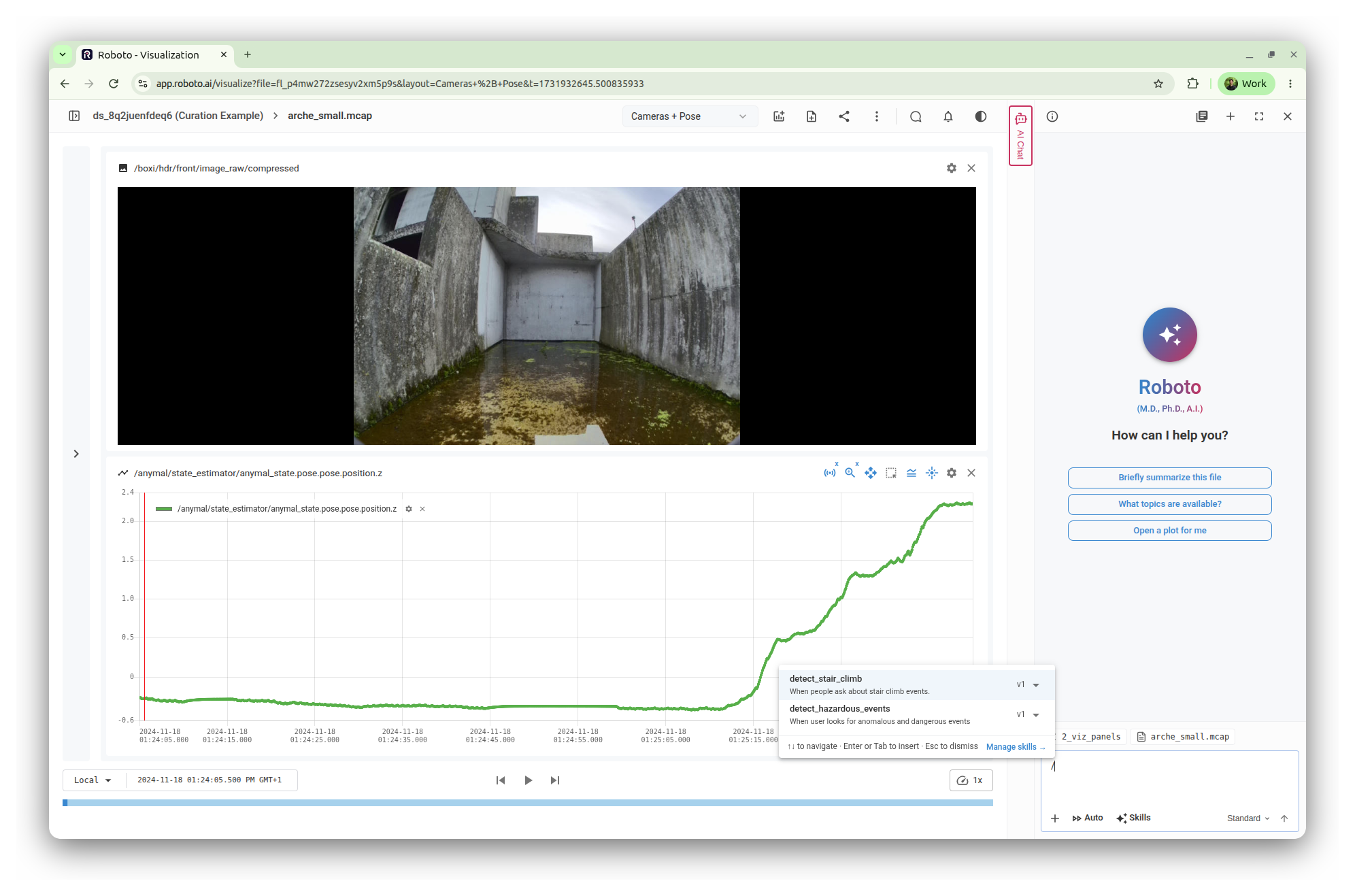

    The visualizer showing the front camera and elevation plot for arche_small.mcap, with the AI Chat panel open and the skill picker showing detect_stair_climb after typing "/"

  2. The AI works through the procedure: it analyzes the elevation channel for candidate intervals, samples camera frames to confirm the robot is on a staircase, and creates a Stair Climb Event for the confirmed interval. When it finishes, the event appears on the timeline, and the chat explains how it was detected — the threshold crossing, the visual confirmation, and the event boundaries.

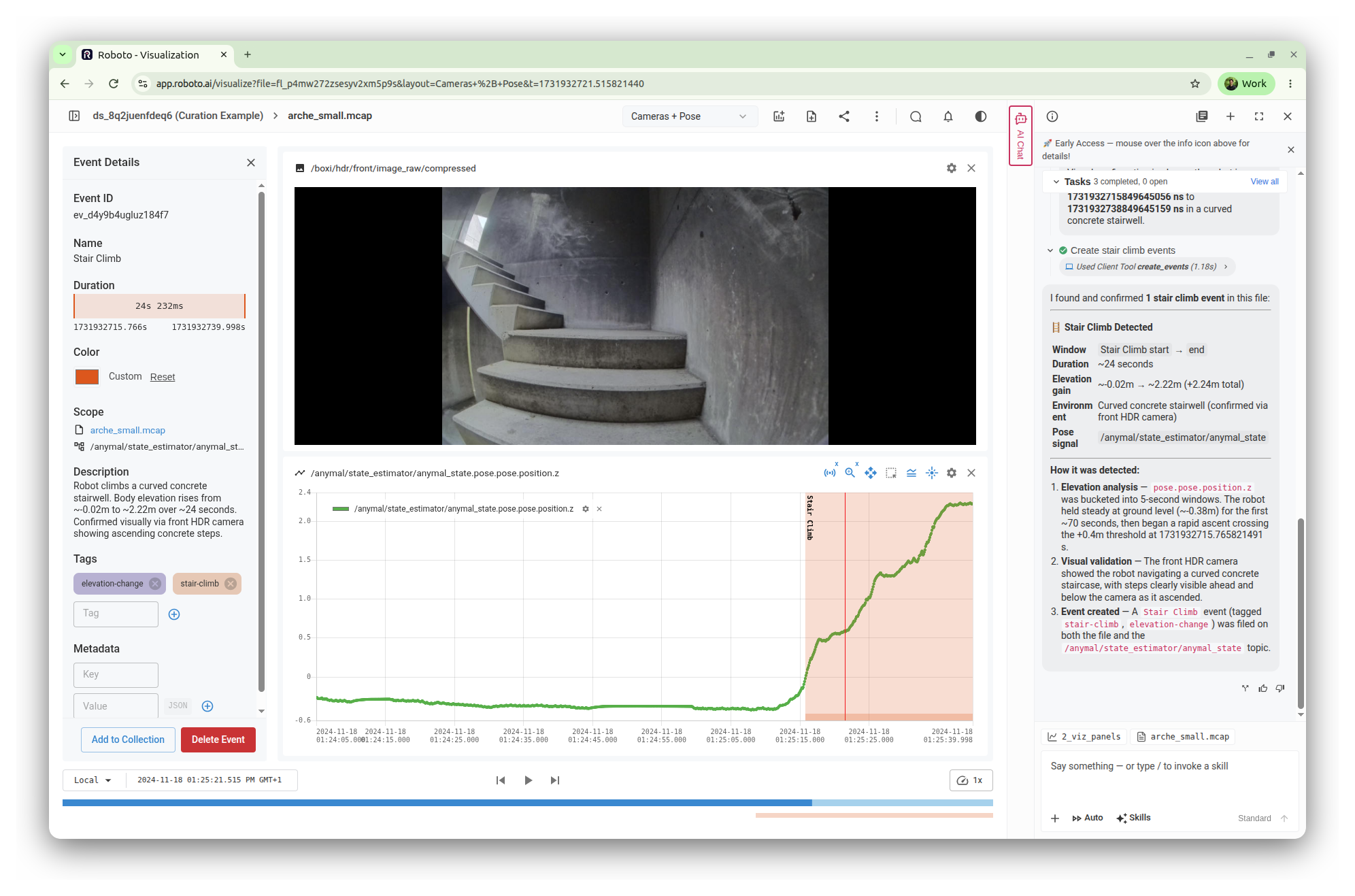

    The visualizer after the skill has run, showing a Stair Climb Event highlighted on the elevation plot, the event details panel, and the AI's explanation of how the event was detected

The event is now part of the dataset — you can inspect its time bounds against the camera and plot, adjust it, or delete it like any other event.

Create an Agent#

Testing the skill in chat works well for a single dataset, but doesn’t scale to every new recording. That’s what an Agent is for: a named, reusable AI worker that binds instructions, skills, and a required Goal to typed variables — so anyone on your team can run the same curation job on a new dataset with one click.

  1. Go to Agents → Create Agent and fill in the Details section:

    • Name: Stair Climb Agent

    • Description: A demo agent that curates Stair Climb Events based on the robot's position and front camera.

    • Model: Standard

    • Kickoff message: You are tasked to analyze legged robot data and identify Stair Climb Events.

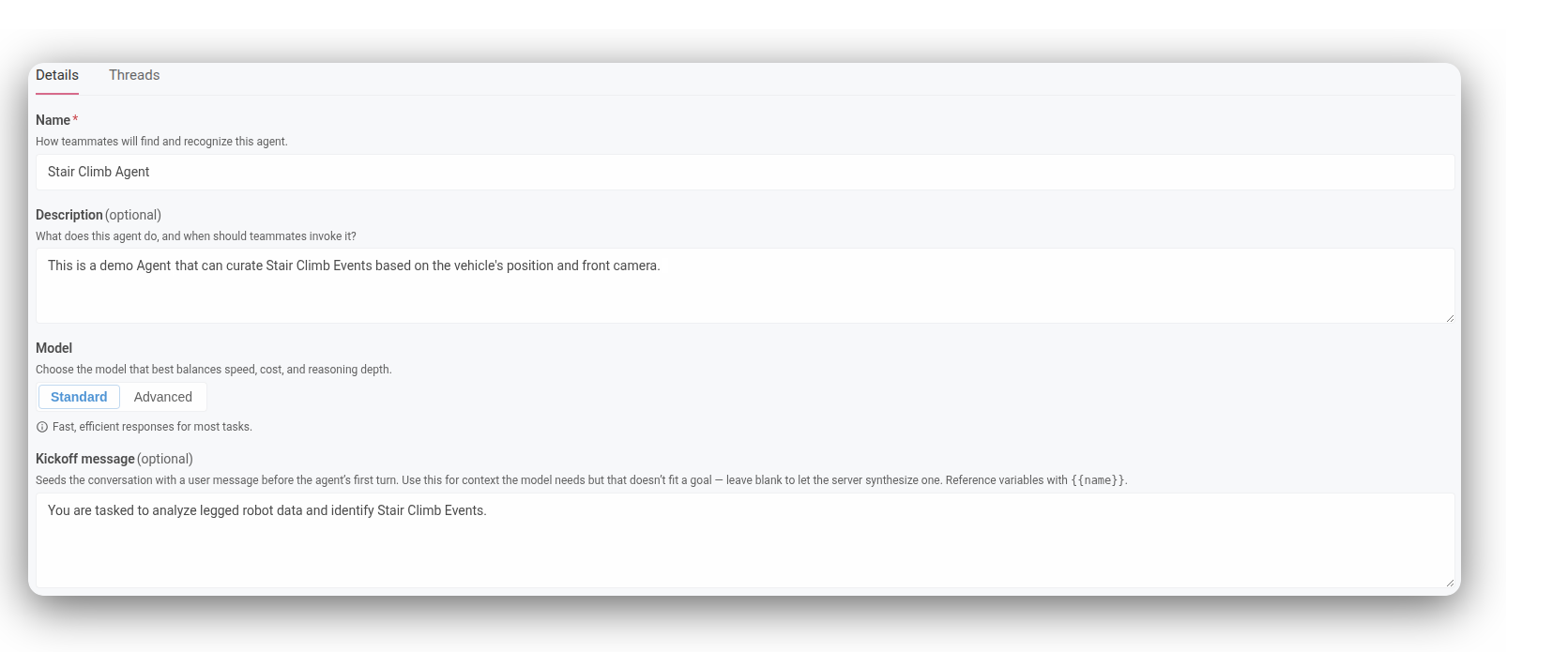

    The Details section of the agent form, with the name, description, model, and kickoff message filled in

  2. In the Goals section, add a Create events goal. A goal is a required outcome: the agent’s turn succeeds only after the goal is achieved, making the workflow dependable enough to run unattended.

    • Dataset: bound to {{dataset.id}} — filled in at launch time.

    • Event types: one entry, Stair Climb Event with the description When a robot ascends stairs. The agent can only create events of the types you declare here.

    • Add created events to a collection: enabled. The collection is bound to {{collection.id}}, also filled in at launch time.

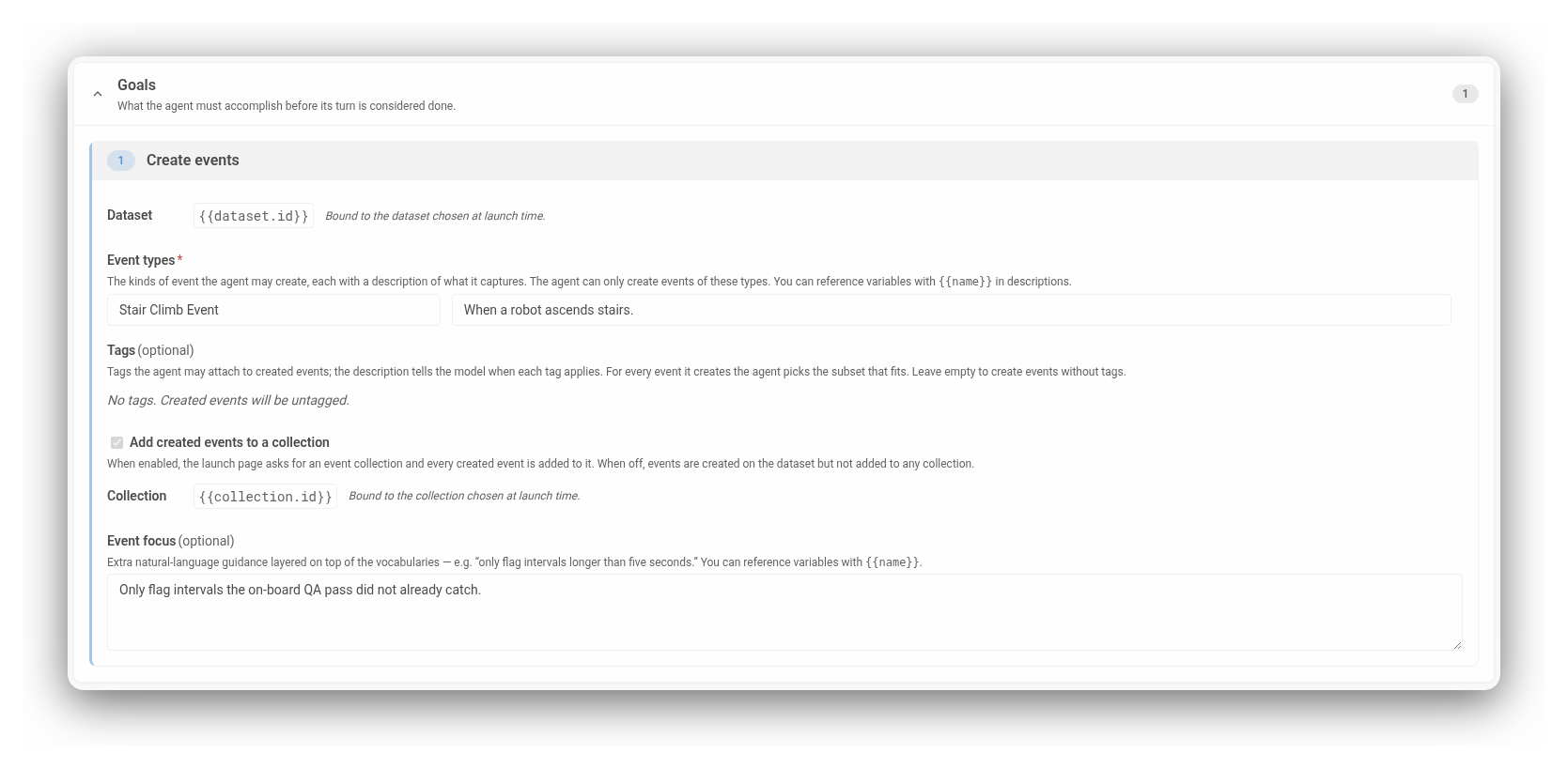

    The Goals section of the agent form, showing a Create events goal with a Stair Climb Event type, bound to dataset and collection variables

  3. In the Skills section, attach detect_stair_climb so the agent investigates datasets using the exact procedure you tested. Pin a version, or leave it on Latest to track the newest.

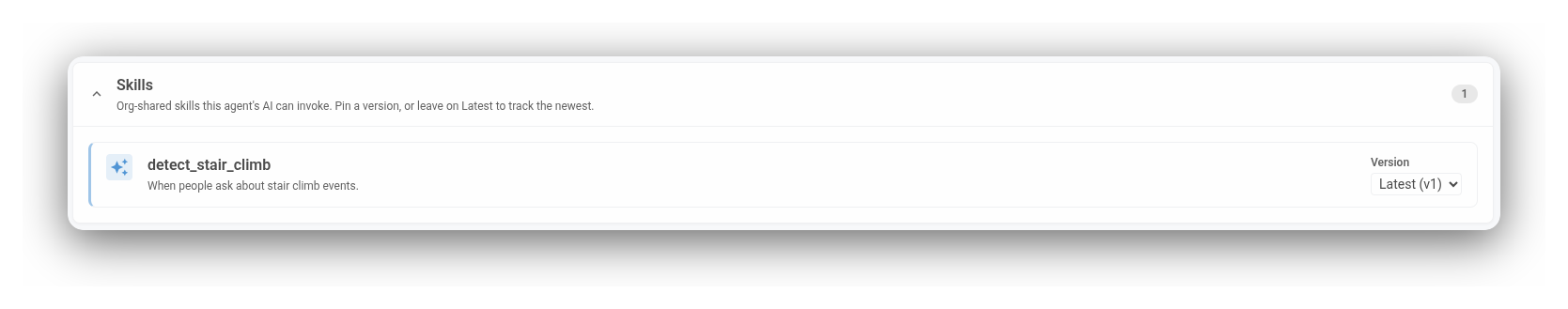

    The Skills section of the agent form, with detect_stair_climb attached and its version set to Latest (v1)

Save the agent.

Tip

Like skills, agents can also be created from a conversation: ask AI Chat to turn the current thread into a reusable agent, then review and save the pre-filled draft.

Create a Collection for the Events#

  1. Go to Collections, click + New, and create an empty collection to receive the curated events:

    • Name: stair_climb_collection

    • Description: Collection with auto-curated stair climb events

    • Entity type: Event

    The New collection dialog on the Collections page, creating an empty Event collection named stair_climb_collection

Copy the new collection’s ID (it starts with cl_) — you’ll need it at launch.

Launch the Agent on the Second Dataset#

  1. Open the Stair Climb Agent and click Launch. The launch form asks for the agent’s two variables: the collection you just created, and the second dataset (the one holding polyterrasse_small.mcap) — a dataset the agent has never seen.

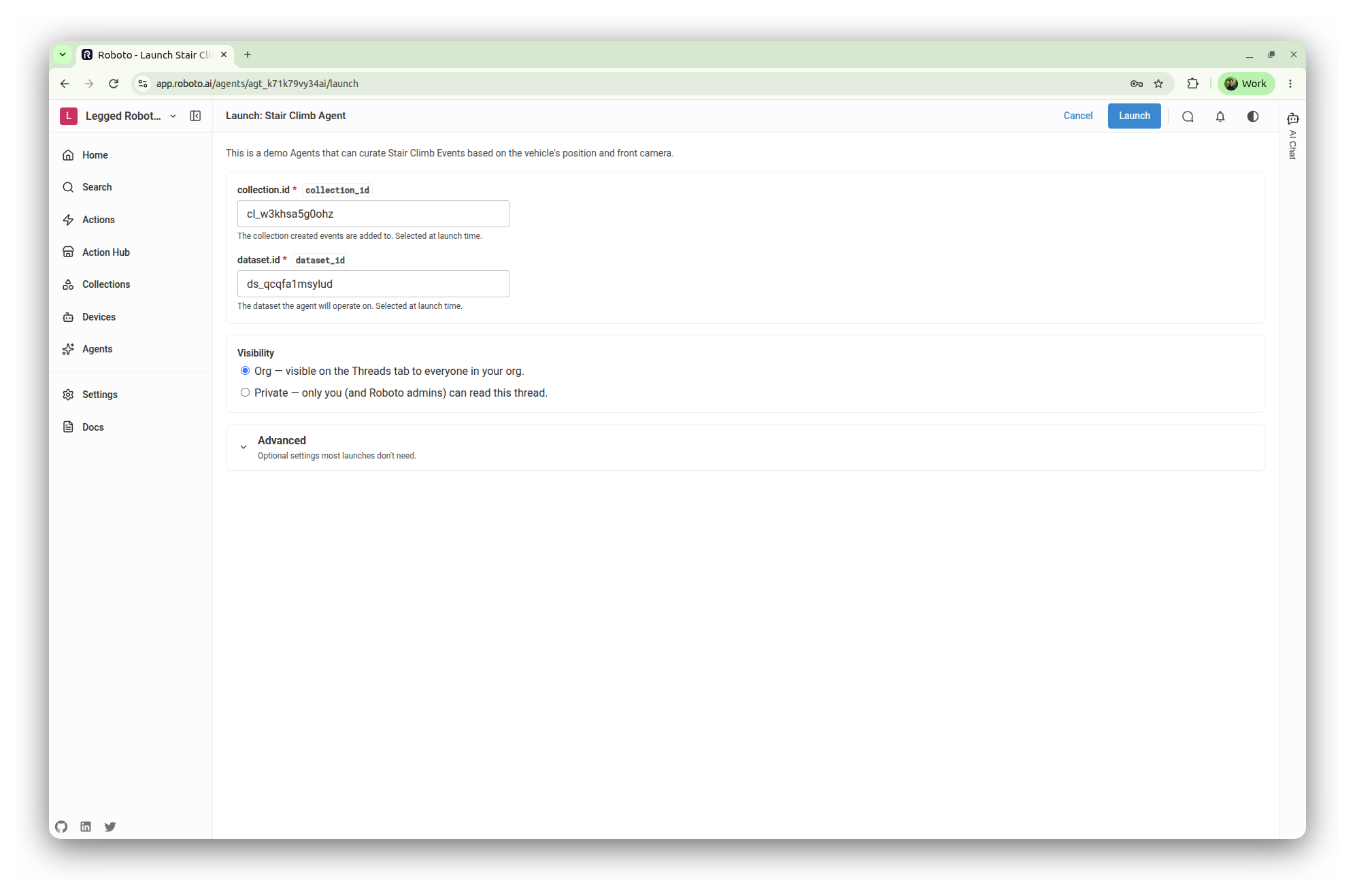

    The agent launch form with the collection.id and dataset.id variables filled in

  2. Click Launch. This starts a thread you can follow live: the task list on the left tracks the agent’s progress as it loads the skill, analyzes the elevation data, validates candidates against the camera, and creates the events. On this log it finds and creates two Stair Climb Events, each with its methodology spelled out — and because of the goal, both are added to your collection before the turn can complete.

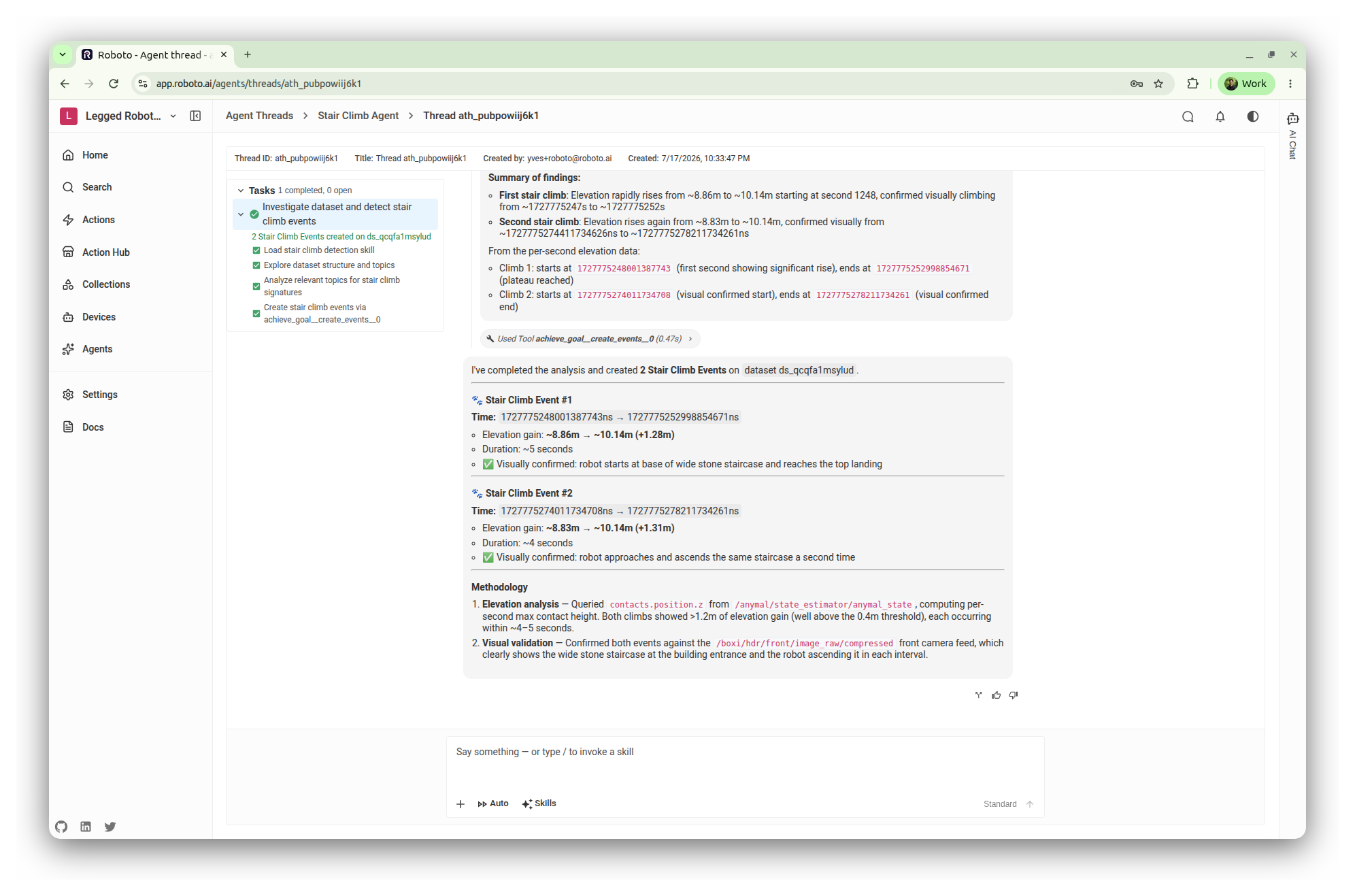

    The agent thread view, showing the completed task list and the agent's summary of two created Stair Climb Events with their time bounds, elevation gains, and detection methodology

Review the Results#

  1. When the thread finishes, open stair_climb_collection. It now contains the two events, each carrying a description of what happened and why it qualified.

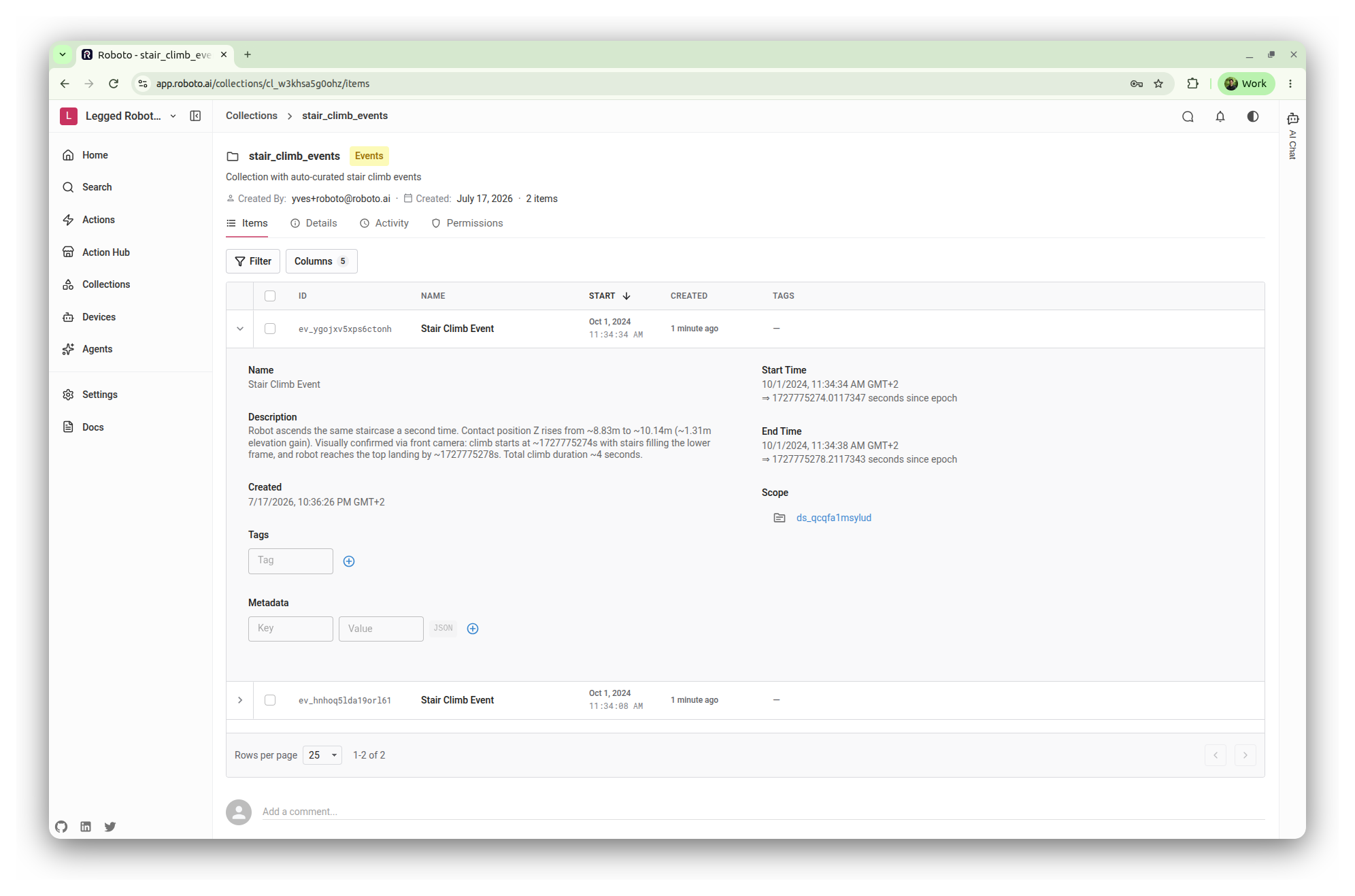

    The stair_climb_collection page listing two Stair Climb Events, with one expanded to show its description, time bounds, and dataset scope

  2. Click through an event to validate it in the visualizer: the event interval is highlighted on the elevation plot, and the camera confirms the robot on the staircase at that moment.

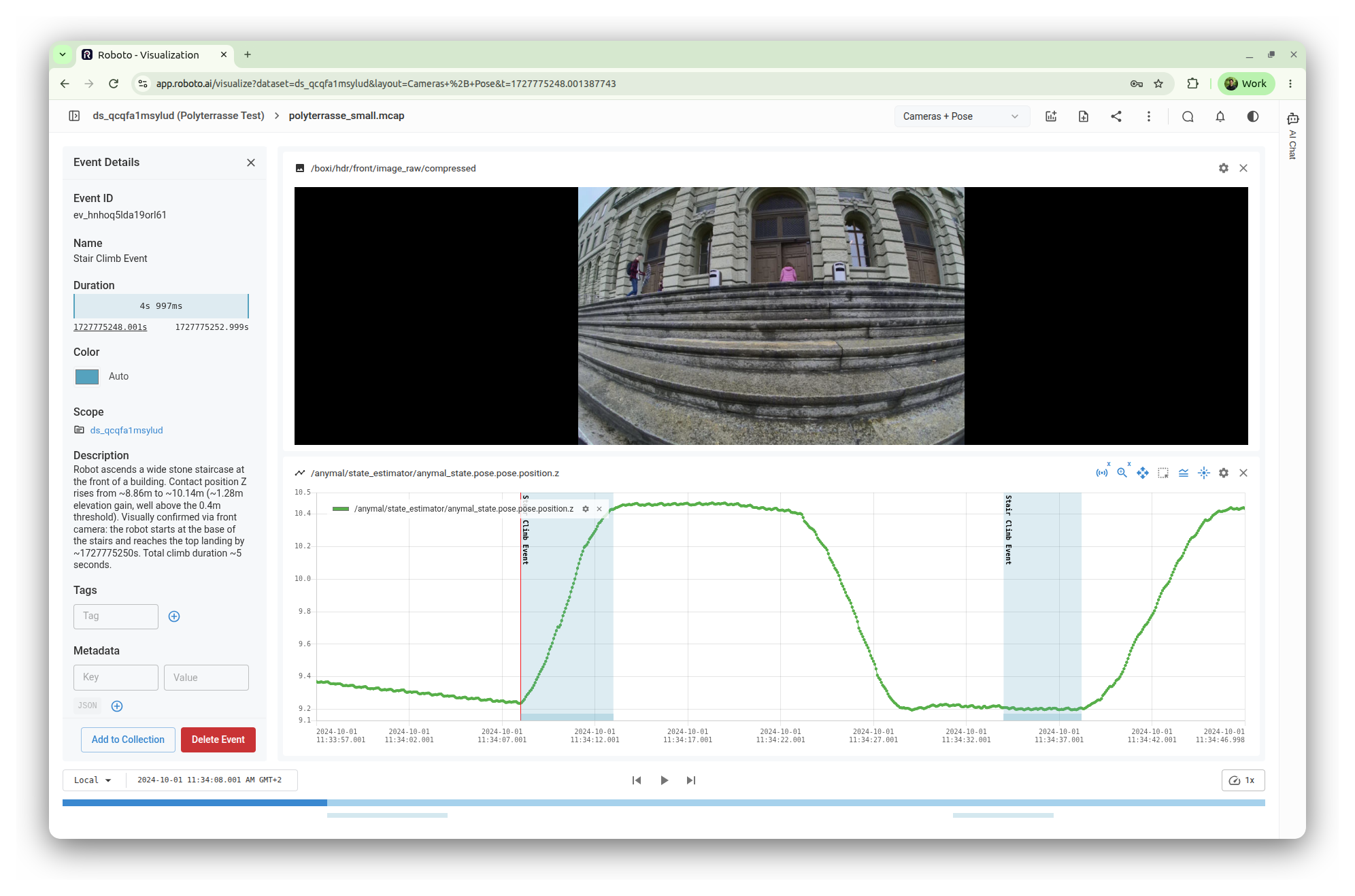

    The visualizer on polyterrasse_small.mcap showing a created Stair Climb Event highlighted on the elevation plot, with the front camera at the staircase and the event details panel open

Creating Agents from the SDK#

Everything above — creating skills and agents, and launching them with goals — can also be done programmatically. See Agents and Threads, Skills, and Goals for SDK examples.

Conclusion#

You went from two raw logs to a curated, versioned collection of validated events — and the judgment that produced it lives in a skill and an agent your whole team can reuse on the next dataset.

From here:

  • Curate at scale: launch the agent on any new dataset; every confirmed event lands in the same collection.

  • Hand off downstream: collections are versioned, so you can pin a version and hand the exact event set to a reviewer or a training pipeline. For example, you can use an action from the Action Hub to convert the curated events into a LeRobot dataset on Hugging Face.

  • Automate fully: pair the agent with an Action and a trigger to launch it automatically whenever a new dataset finishes ingestion.
